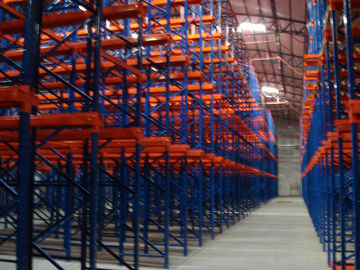

High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth

High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth
High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth

Large Image :  High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth

Product Details:
Place of Origin: China
Brand Name: FP
Certification: ISO
Model Number: WTL-DRI-002
FOB Port: Shenzhen/Guangzhou
Warranty: 3 years
Depth(Upright frame): 1500 mm
Loading Capacity: 400-800 Kg
Materials: steel Q235
Pitch holes: 75mm square hole
Surface Finish: Powder coating|antirust|Zinc Plated
Width/Length(Beam): 3900 mm
Size: Customized
Product Name: Double Deep Pallet Racking
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

vertical storage racks

,

selective pallet racking



High Density Drive-In Pallet Racking System For Cold Store , 1.5mm Depth





Quick Detail:



      Drive-in racking system provides the space efficiency and high volume storage of block stacking, with easy access to pallets. There are no aisles and no cross beams, providing maximum space efficiency. And because each pallet sits on its own support rails, pallets are no longer stacked on top of each other. Stable and highly space efficient, drive-in racking provides maximum use of storage volume together with fast input and retrieval of pallets.





Description:





      This system is base on the storage by accumulation principle, which enables the highest use of available space in terms of both area and height.

      Drive-in racking is designed for the storage of homogenous products. It accommodates a large number of pallets for each SKU.

      Two management systems are available: the drive-in system, with only one access aisle, and the drive-through system, with access to the load from both sides of the racking.

      The system is frequently used in cold stores (refrigeration and freezing) which require maximum use of space for the storage of products in a controlled temperature.





Applications:



      Because of its large storage density, its rate of floor space utilization is higher.

      Often used for refrigerator, food, tobacco and the high cost of storage space in the warehouse







Specifications:





Max Width/Length(beam)

Up to 3900mm

Max Depth(Upright frame)

Up to 1500mm

System Height

≤10m

Capacity/layer

400~800kg

Mobility

The height of each beam can be adjusted by 75mm of pitch freely.

Surface Finish

Powder coating which is characterized by surface-smoothly, antirust, anti-corrosive, non toxic.

Material

High quality steel, such as Q235B etc.





Structure Diagram





Competitive Advantage:



1. Maximum profitability of the available space (up to 80%).

2. Removal of aisles between the ranking.

3. Rigorous control of entries and exits.

4. It allows as many SKU as loading lanes.
