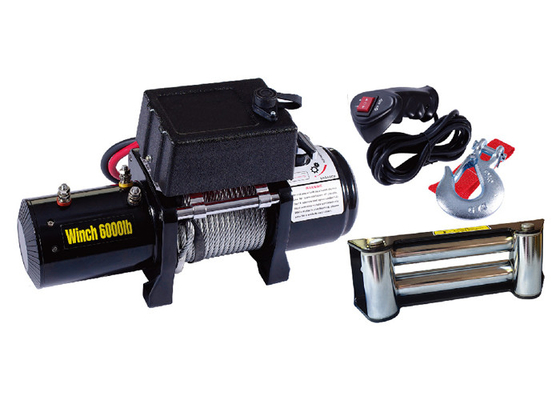

Small ATV Winch Electric 6000 lb With Automatic In - The - Drum For Warehouse

Small ATV Winch Electric 6000 lb With Automatic In - The - Drum For Warehouse
Small ATV Winch Electric 6000 lb With Automatic In - The - Drum For Warehouse

Large Image :  Small ATV Winch Electric 6000 lb With Automatic In - The - Drum For Warehouse

Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: H6000(12V)
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12,000pcs per month
Detailed Product Description
Product Name: Electric Winch Application: Warehouse, Building, Wharf, Ect.
Capacity: 6000lb Surface: Painting, Chorme
Standard: GS/CE Type: Electric
High Light:

portable atv winch

,

winches for atv

6000lb Electric ATV WInch





PRODUCT SUMMARY

Features an all-metal planetary geartrain plus mechanical and dynamic braking. Frees pooling clutch with ergonomic control. Has sealed solenoids for all-weather protection. Sealed handlebar switch and 10-ft. remote. Includes roller fairlead and mounting plate.



DESCRIPTION

* Capacity from 0.5T-30T.

* Wheels lubricated and equipped with bearings for long life.

* More thickness of the steel plates and strong shaft to ensure the good safety.

* The static test is 4times of capacity, and running test is 1.5times of capacity one by one

* One year warranty.



KEY SPECS

Model H6000(12V)
Rated line pull 6000lb(2721kg) single line
Motor 4.0KW/5.5HP 12V,Serues Wound
Control Remote switch,12ft(3.7m) lead
Gear train 3 Stage Planetary
Gear reductions ratio 218:01:00
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Dimensions Φ2.5"x5.5"(Φ63.5mmx140mm)
Cable (Dia X L) Φ1/4"x66'(Φ6.4mmx20m)
Fairlead 4-Way Roller Fairlead
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(1.83m)
Overall dimensions 17.7"x6.1"x8.6"(449.5x156x215mm)
Mounting Bolt Pattern 166.4mmx114.3mm
N.W. /G.W. 26kg/28kg
