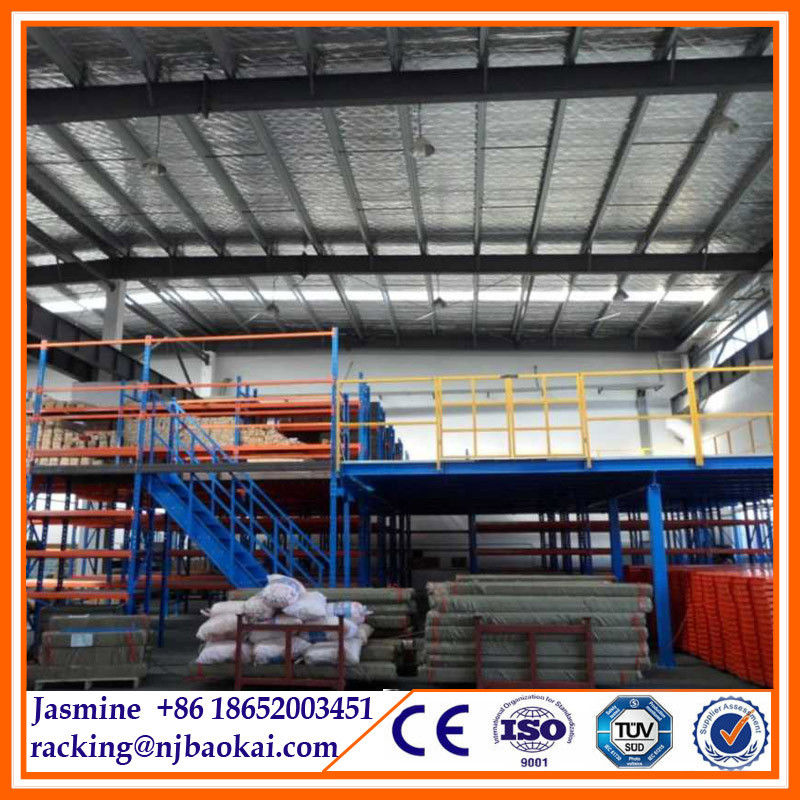

Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor

Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor
Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor

Large Image :  Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor

Product Details:
Place of Origin: Nanjing
Brand Name: Baokai
Certification: CE;SGS;ISO
Model Number: MF-01-BK
Surface Treatment: Epoxy Electrostatic Painting
Length: 800-900-1000-1200-1300-1400-1500-1600-1700-1800 Mm
Width: Selective
Height: 3000-4000-4877-5000-6000-7000-8000-9000 Mm
Load: 100-1900 Kgs Per Sqm
Material: Q235 steel
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD0.62-1.02/kg
Packaging Details: Plastic banding +Stretch film wrapped, easy loading and unloading with standard forklift truck or pallet jack.
Delivery Time: 15-20days
Payment Terms: TT,L/C
Supply Ability: 5000ton/month
Detailed Product Description
High Light:

Mezzanine floor


storage rack



Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor

Steel platform is mainly consists of post, main beam, sub beam, floors, staircase and frame protector. It can be no on-stie welding. Different design can be provided in line with the loading capacity by selecting different material specification. It is of high intense and widely utilized.

Ourstorage solutionsfor steel mezzanines and equipment platforms include:

1.C-Section –Spans up to 20 feet. These spans are usually formed from flat structural steel and are typically used in small to medium-size applications.

2.Beam and C-Section —A beam and C-section combination allows spans more than 20 feet in one direction, while keeping the depth of structure to a minimum. This combination can be used in all size mezzanine applications.

3.Beam and Beam –In this approach, all wide-flange beam design is used when heavy loading or unusual span are required.

4.Beam and Bar Joist —This system is used for medium to large projects were wide spans and high capacity are needed

5.Bar Joist and Girder Joist –This set-up is open-web in both directions and is typically used in large projects or in large spans where high capacity is needed.


Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor 0


Material: Cold-roll Steel Q235

Racking Finish: Powder Coated Finish or Galvanized

Height: 3000-4000-4877-5000-6000-7000-8000-9000 mm

Length: 800-900-1000-1200-1300-1400-1500-1600-1700-1800 mm

Load Capacity: 100-1900 kgs per sqm

Different sizes, various specifications and colors are available according to customers' different needs.

World class Manufacturing: Only quality certified steel: ISO 9001-2000 Quality Assured,CE certificate

World class Design standard: Design to AS4084-2012 and International Standards ISO9001,

Complies With European FEM Regulations and All codes including SEMA.

Deck materials:

Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor 1

There are a selection of mezzanine deck options dependent on the application of the floor.

a) 18+9mm chipboard

b) Steel Checker Plate

c) Steel Checker Plate + chipboard

d) Open Steel Mesh Panels

Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor 2

Technical Descriptions:Structural Warehouse Mezzanines Racking

1. Processing and Manufacturing

1) Sharp edges of all processed pieces should be removed, no surface damage;

2) All welded pieces should be solid and the welding line is smoothly-done.

2. Allowable Error

1)The allowance of length, width and height is in 2mm;

2)After erection of Mezzanine Floor, the vertical allowance between top side and bottom side is less than 5 mm

3. Surface Treatment of Racking

Degreasing (oil-removing) →acid washing (rust-removing) →phosphating (to add the adhesive force) →pre-drying→ powder coating →solidifying and leveling →cooling

4. Quality showing

1) All parts of Mezzanine Floor should be smooth, no edges.

2) The color should be pure, and the surface of all parts is smooth and no scratches.

5. Labels and Packing

1)The underlay should be set when packing to prevent damages. Cartons are used for packing small items and standard pieces. Stickers should be put on each item.

2)The packed goods should be subject to the transportation of vessels.

The most common mezzanine floor deck option tends to be 18+9mm chipboard, however there are a selection of mezzanine deck options dependent on the application of the floor.

a) 18+9mm chipboard

b) Steel Checker Plate

c) Steel Checker Plate + chipboard

d) Open Steel Mesh Panels

Load capacity of the floor panel:

Material of Floor panel


Load capacity

Riffled plate

W250 * H40 * 2.5

Including Fixed parts, ≤1000kg/per sqm

Flat plate

W225 * H40 * 2.0

Including Fixed parts, ≤600kg/per sqm

Punching floor panel

W225 * H40 * 2.5

Including Fixed parts, ≤600kg/per sqm

Steel Lattice board

H30 * 3mm Mesh 50 * 30

Including Fixed parts, ≤1000kg/per sqm



HS Code:



Strong and stable


For storage purpose or as mezzanine office


Can be assembled and dismantled easily


Create new space


We provide with free safety design Autocad drawings

Loading Capacity:

Up to 1000 kgs per square meter


1~5 floors, customized

Floor height:

Every 50mm adjustable from bottom to top of uprights

Mezzanine Height:

Up to 12000mm

Mezzanine Depth:


Mezzanine Width


Beam Length:

Up to 4000mm


Good welding by our skilled workers

Corrosion protection surface treatment:

Lead free epoxy electrostatic powder coating


Blue, safety orange and computer grey or customized

Raw Steel Code:

Q235B High Grade Hot Rolled Steel

Material thickness:


Main Parts:

Double upright column , beams, steel floorings or wood boards, loading gate, loading platform, stairs, handrails, base plates, bolts and nuts, etc.

Upright frames:

Omega Section 55*90mm/65*90mm/80*126mm


80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50mm

Flooring types:

steel flooring or stamped steel flooring, perforated steel flooring, plywood, etc.

Safety Pin:

L shape locking pins

Free accessories:

Horizontal & diagonal bracings, base plates, safety locking pins, bolts & nuts and all necessary components.


1 set

Production capacity:

5000 tons/month


Knockdown packing with air bubble film package, Neutral package or according to customer's requirements

Loading port:

Nanjing, China

Lead time:

20 working days

Our prices:

Competitive factory prices

Price terms

FOB Nanjing, C&F your sea port, CIF your sea port

Payment Terms:

30% T/T in advance and 70% after goods are ready

Installation instructions:

We can send you installation instructions before shipment.

Warranty time:

Warranty: 3 years guarantee from the delivery date

Our products’ advantages

a) high-density storage style, specially for loosening or small box goods

b) mezzanine can be come true double level or triple level walkway for storage manually

c) Medium-duty with loading capacity of 50-300kg/layer and heavy-duty with loading capacity of 300-1000kg/layer

d) working with hoisting machine, pallet jack, store manually for small or loosening goods


We provide Horizontal & diagonal braces connecting Upright Frames for stronger structure, row spacer, upright footplates, safety locking pins,Bolts & nuts, anchors and screw, U-shape,L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, and all necessary components.


The beams, and upright posts are separate packed by bubble film, can be also carton according to customer's requirement.

Shelves packed in carton. Safe for long-distance transportation.Container load:50-100 sets per 1x20ft container, 100-160 per 1x40ft container

Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor 3

Delivery time:
Within 15 days for ordinary order quantity.
Big production capacity allow us in a position to make quick delivery.

Kindly inform us the info. as below:

A) The dimension of racking (length*width*height);

B) How many layers;

C) The loading capacity per each layer;

D) Warehouse racking layout, if available.

Guarantee of Nanjing Baokai Storage Equipment Co.,Ltd.:

3~10 years warranty in case that

A) Proper handling during operation, correctly forklift handling while stacking/un-stacking

B) Overloading is prohibited

C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material(for zinc plated and powder coated products, no limitation for hot dip galvanized)

D)We will take full responsibility for any manufacturing defect is identified after arrival, would either refund or reship good products to you.


Warehouse Equipment EU Pallet Rack Metal Mezzanine Floor 4
