Product Details:
Payment & Shipping Terms:
|
| High Light: | metal racking systems,stainless steel shelves |
||
|---|---|---|---|
Steel / Plywood Plate Medium Duty Racking for Warehouse / Supermarket Store
| Product Name: | Medium Duty Racking | Applications: | Warehouse Storage Rack, Industrial Storage, Cold Storage Applications |
| Depth(Upright Frame): | 600-1500mm | Height (Upright/Pillar): | 2000mm - 5000mm |
| Loading Capacity:: | 300-500 Kg | Pitch Holes: | 50mm Square Hole |
| Surface Finish: | Powder Coating, Antirust, Zinc Plated | Width/Length(Beam): | 900-2700mm |

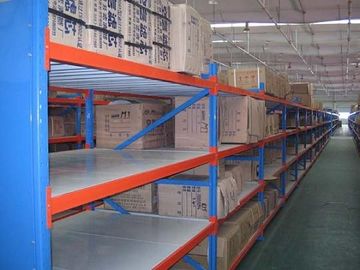

Steel/Plywood Plate Medium Duty Racking for Warehouse Storage
Specification:
| Classification: | Medium Duty Goods Shelf |
| Use: |
Warehouse storage rack Supermarket store Office display Exhibition hall |
| Feature: |
Save space Store various small goods with medium duty loads |
| Structure: | Dismountable structure |
| Loading capacity: | 300-500 Kg per level |
| Quality: | Strong and stable |
| Size: | Customized size |
| Materials: | High quality steel Q235 |
| Material thickness: | 0.8-2.5mm |
| Upright: | Omega Section |
| Pitch holes: | pitch 50mm square hole with good safety |
| Beams: | Box-shape beams or Slide-structure stair-type beam |
| Levels: | 2~8 levels, customized |
| Welding: | Good welding |
| Safety Pin: | L shape locking pins |
| Colors: | Standard Blue&Orange or customized |
| HS Code | 73089000 |
Competitive Advantages
1. Height between the beams is adjustable according to goods size.
2. Various sizes and custom made available to suit your warehouse needs.
3. Space for each layer can be separated freely, the height of each layer can be adjusted by pitch 75mm freely
4. Simple and quick installation and disassembling
Remarks
A) Specification of the racking:Height*Width/Length*Depth
B) How many bays and layers
C) Load capacity of each layer
D) RAL color
E) Warehouse layout if possible(Auto CAD format)
