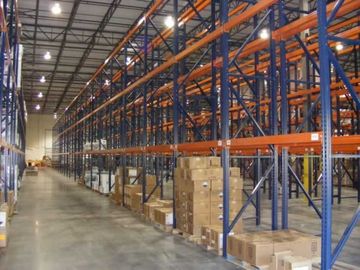

Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System

Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System
Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System

Large Image :  Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System

Product Details:
Place of Origin: China
Brand Name: FP
Certification: ISO
Model Number: WTL-SPR-024
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

multi level pallet racking

,

pallet rack systems


Heavy Duty Standard Pallet Racking Safety , Antrirust High Density Racking System


Advantage:

1. Antrirust high density racking system;
2. Safety Color: Orange beam and Blue upright;
3. Load capacity reaches 3000kg per layer of beams;
4. Space saving
5. Detachable structure: easily to assemble and disassemble


Description:

The standard pallet racking range is available in medium and heavy duty, however this range of racking could be described as extra heavy duty offering up to 3 tonnes per level storage capacity.

Beams levels are adjustable to suit pallet or product to be stored. Single sided or double sided runs are available. Decks are available in timber or in steel. Custom colour finishes available. Accessories are available to customise your racking including, back stops, fork spacers etc.

It is not only the weight loading that makes this racking system unique, it can also accommodate wide loads which can not be stored in conventional pallet racking.




Specifications:


Classification:

Heavy duty Pallet Racking

Loading capacity:

1000-3000 Kg per level

Quality:

Strong and stable

Size:

Customized size

Materials:

High quality steel Q235

Material thickness:

1.5-2.5mm

Upright:

Omega Section

Pitch holes:

pitch 75mm square hole with good safety

Beams:

Box-shape beams or reinforced box-typed beam

Levels:

2~8 levels, customized

Welding:

Good neat welding

Safety Pin:

L shape locking pins

Colors:

Standard Blue & Orange or customized

HS Code

73089000

Maximum Height(Upright/Pillar):

2000mm - 12,000 mm

Max Width/Length(Beam):

Up to 3,900 mm

Max Depth(Upright frame):

Up to 1,500 mm

Max Weight:

1,000kg - 3,000 kg / layer

Mobility:

The height of each beam can be adjusted by 75mm of pitch freely.

Surface finish:

Powder coating which is characterized by surface-smoothly, antirust, anti-corrosive, non-toxic.

Color:

Blue/Orange/Gray/others



Remarks


A) Specification of the racking:Height*Width/Length*Depth
B) How many bays and layers
C) Load capacity of each layer
D) RAL color
E) Warehouse layout if possible(Auto CAD format)
